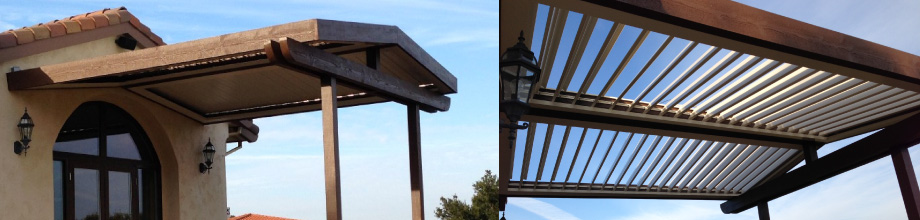

adjustable roof / patio covers companies / adjustable roof systems

FEATURES & BENEFITS OF OUR PATIO COVER SYSTEM

RAIN PROTECTION

Interlocking louvers channel rain into 360° gutters providing protection from the rain.



SOLAR CONTROL = ENERGY SAVINGS

Louvers can be oriented in any direction desirable for maximum control over sunlight. Sun can be let through in the winter to provide solar heat gain, and blocked in the summer months to provide energy-saving shade.



VIRTUALLY MAINTENANCE FREE

Eliminates painting, staining, and waterproofing of traditional cover options. Aluminum construction prevents warping, cracking, and deformation.



BEAUTIFUL APPEARANCE

Apollo louvers and components are available in two standard colors, as well as an endless array of architectural finishes. The baked-on enamel provides a lasting finish. Anodizing, other custom coatings and the sleek louver Apollo system compliment any architectural design. The louvers have the look and feel of a traditional tongue and groove ceiling when fully closed.



INSTALLATION
The Apollo system can be installed by any qualified builder or DIY. The system was designed with the installer in mind, providing short build time and hassle free installation. Complete installation guides are provided to simplify installation.



COMPLETE IN-HOUSE DESIGN SERVICE

A simple sketch is all it takes to start the design process. Axis concepts can provide all necessary engineering documentation.



15 YEAR WARRANTY

Each Apollo Opening Roof System is warranted from defects in materials and finish for 15 years. Electrical components and drive motors are covered for 5 years.



TECHNICAL SPECIFICATIONS





LOUVER / TRACK MATERIAL

6063-T6 Aluminum (All extrusions manufactured following Aluminum Association tolerances and to meet ASTM standards.)



PIN MATERIAL

Self-lubricating, UV resistant Delrin®, by Dupont™



COATINGS (STANDARD)

Electrostatically applied polymer enamel meets or exceeds AAMA organic coating standards. Oven baked to 400° to achieve H-2H hardness rating. The finish provides excellent resistance to stains, scratches, dirt, UV rays, and salt spray.



UNLIMITED CUSTOM FINISHES

Including Kynar and anodized



MAX LOUVER SPAN

10 feet (Please call regarding longer spans.)



MAXIMUM LOUVERS PER BAY

50



LOAD RATINGS

Standard load rating 110 mph, 20 lb. live load, 60 lb. snow load (higher ratings are achievable)



LOUVER SLOPE

5/8” drop per 10’ of louver, away from actuator assembly



LOUVER ROTATION

Nearly 160° of motion from a flat, closed position





OPENING ROOF SYSTEM COMPONENTS (DOWNLOAD : Apollo Technical Brochure | PDF | 1.1MB )

Technical specs of one of our louvered roof systems.
